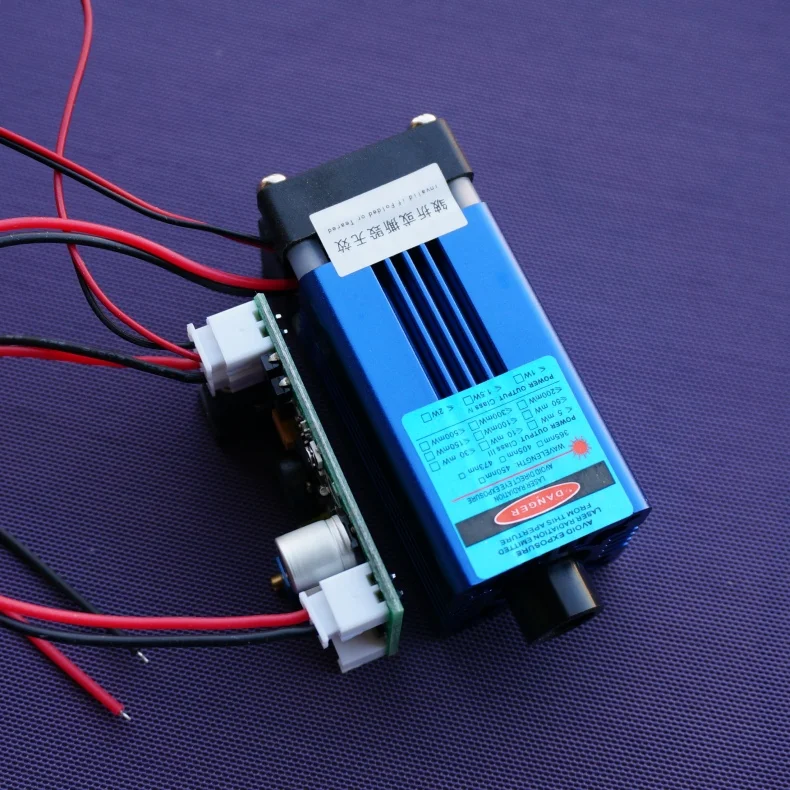

445nm 12V Dot Blue Laser Module 2000mW with TTL

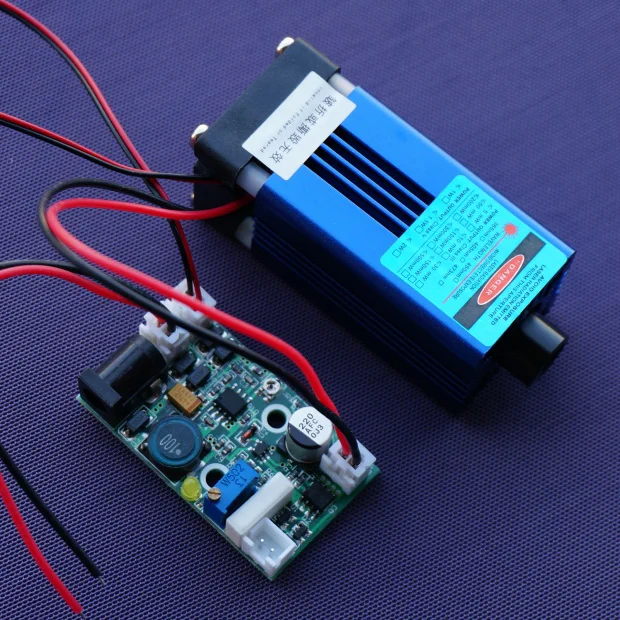

This model is one of our latest laser modules. The circuit board has been improved to be more durable and stable. 100mW, 1000mW, 1500mW and 2000mW are optional, with reverse polarity protection and cooling system. This blue laser module can work 24 hours a day, and you don't need to worry about overheating or overvoltage.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
2) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: dot (blue)
• Laser body size: 69mm x 30mm x 30mm
• Circuit board size: 47.5mm x 31.5mm x 16mm
• Output wavelength: 445nm
• Output power: 100mW - 2000mW
• Cooling method: cooling fan

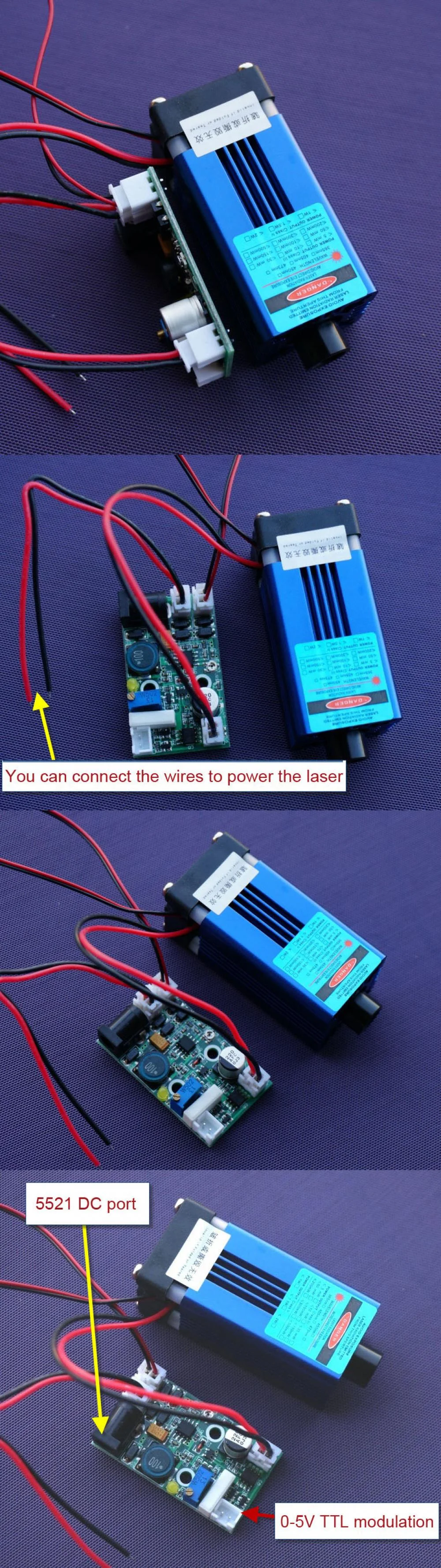

• TTL modulation: available (0-5V)
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V (10-14V)
• Working current: I<1.7A
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
