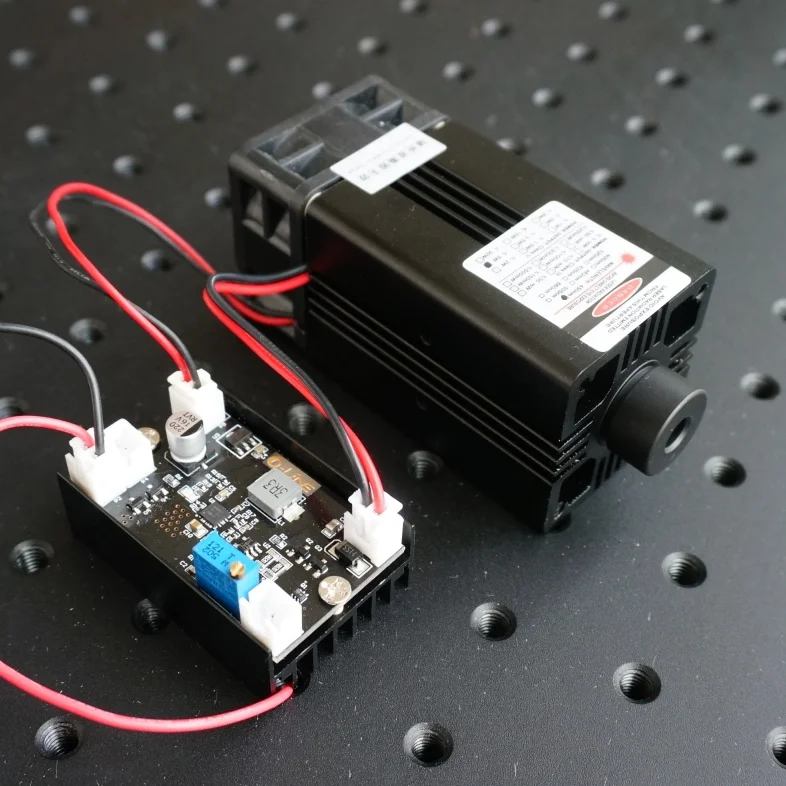

Most Powerful 445nm Blue Laser Module 3500mW / 5000mW / 6500mW

This model is one of our most powerful blue laser modules, with low prices and high stability. With an external DC port and power cords, you just need to connect the 12V power supply, and this module will be able to emit the laser beam. If the power supply is on, this laser can work continuously and has no time limit. With a forced cooling fan and temperature control system, you do not need to worry about overheating.

Technical Parameters
• Wavelength: 445nm (blue)
• Output power: 3500mW / 5000mW / 6500mW
• Housing material: 7075 aeronautical aluminum
• Output mode: CW (It can work continuously)
• Cooling method: cooling fan, heat dissipation materials
• Reverse polarity protection: automatic positive and negative identification
• Control circuit: constant current
• Modulation frequency: 0-20kHz
• Warm-up time: < 2 seconds
• Operating current: I < 5A
• Operating voltage: DC 12V
• Operating temperature: -10 ℃ - 50 ℃
• Module dimensions: 30 x 30 x 69 mm
• Dimensions of the circuit board: 16 x 31.5 x 47.5 mm

Notes
The suggested input voltage is 12-14V, or this module may be burned with overvoltage! For any technical questions, please contact us via info@lasersea.com.
