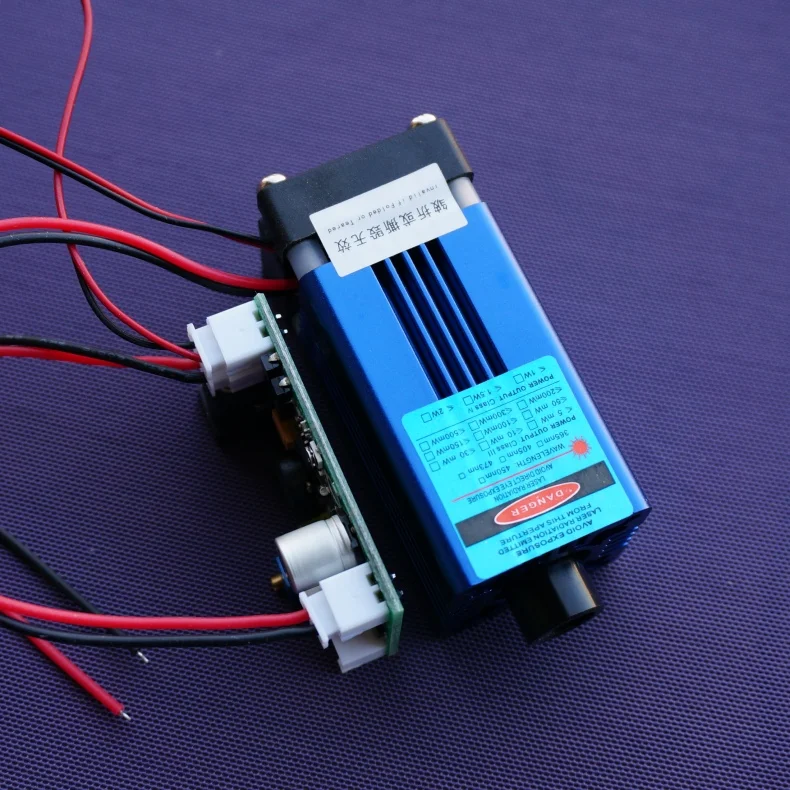

Powerful 12V 445nm Blue Laser Module Line/Cross

To meet the needs of OEM customers, we developed this line/cross laser module. It comes with the standard 445nm wavelength and high power. 100mW / 1000mW / 1500mW / 2000mW is optional - you can choose according to your needs. For product customizations, please contact us by e-mail. We will reply to you as soon as possible.

Notes
1) The input voltage is 12V. Overvoltage will cause damage to the circuit and module.
1) If you have any technical questions, please contact us.

Technical Parameters
• Laser type: line / cross
• Laser body size: 69mm x 30mm x 30mm

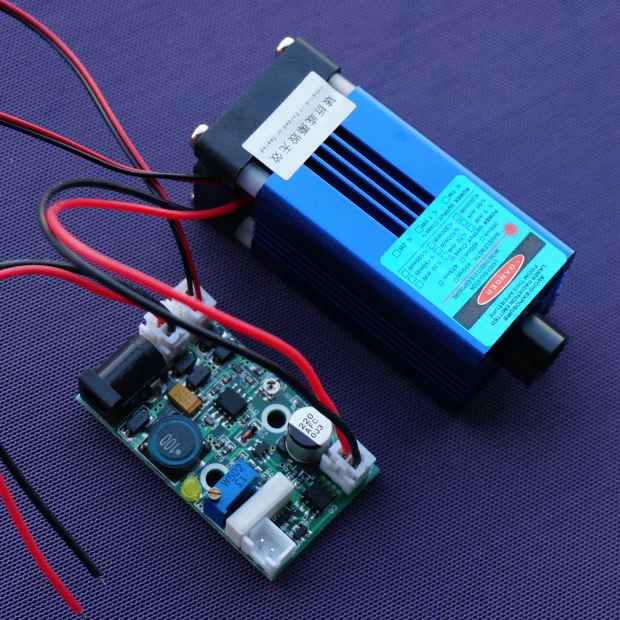

• Circuit board size: 47.5mm x 31.5mm x 16mm
• Output wavelength: 445nm (blue)
• Output power: 100mW - 2000mW
• Cooling method: cooling fan

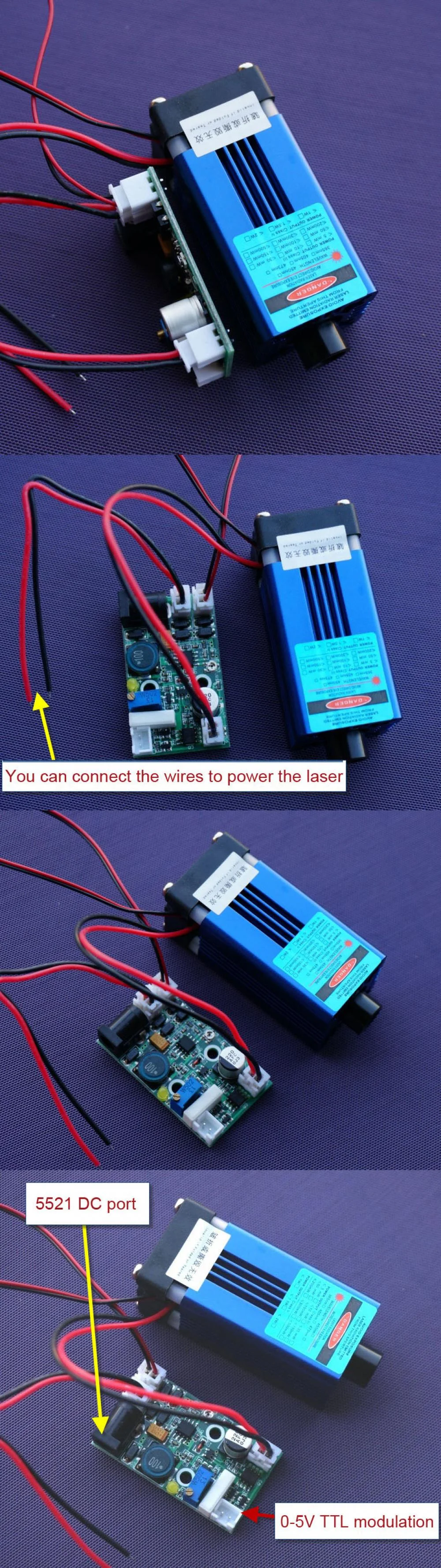

• TTL modulation: available
• Modulation voltage: 0-5V
• Housing material: aluminum
• Circuit control: constant current
• Reverse polarity protection: available
• Working voltage: DC=12V (10-14V)
• Working current: I<1.7A
• Warm-up time: none
• Working temperature: -10℃～+40℃
• Storage temperature: -10℃～＋40℃
